Sterilization and filling solution for large fruit pulp products

The sterilization and filling technology of large fruit pulp products has been a difficult problem for many businesses and raw material suppliers for many years. The larger the size of the fruit pulp, the higher the manufacturing technology requirements for the sterilization and filling equipment.

Shanghai Tofflon Joy combines the advanced technology at home and abroad and its own advantages to meet the market demand. Through independent research and development, design and manufacture of instant sterilization continuous filling equipment for large fruit pulp products -- multifunctional pipe-in-pie sterilizer and aseptic large bag filling system.

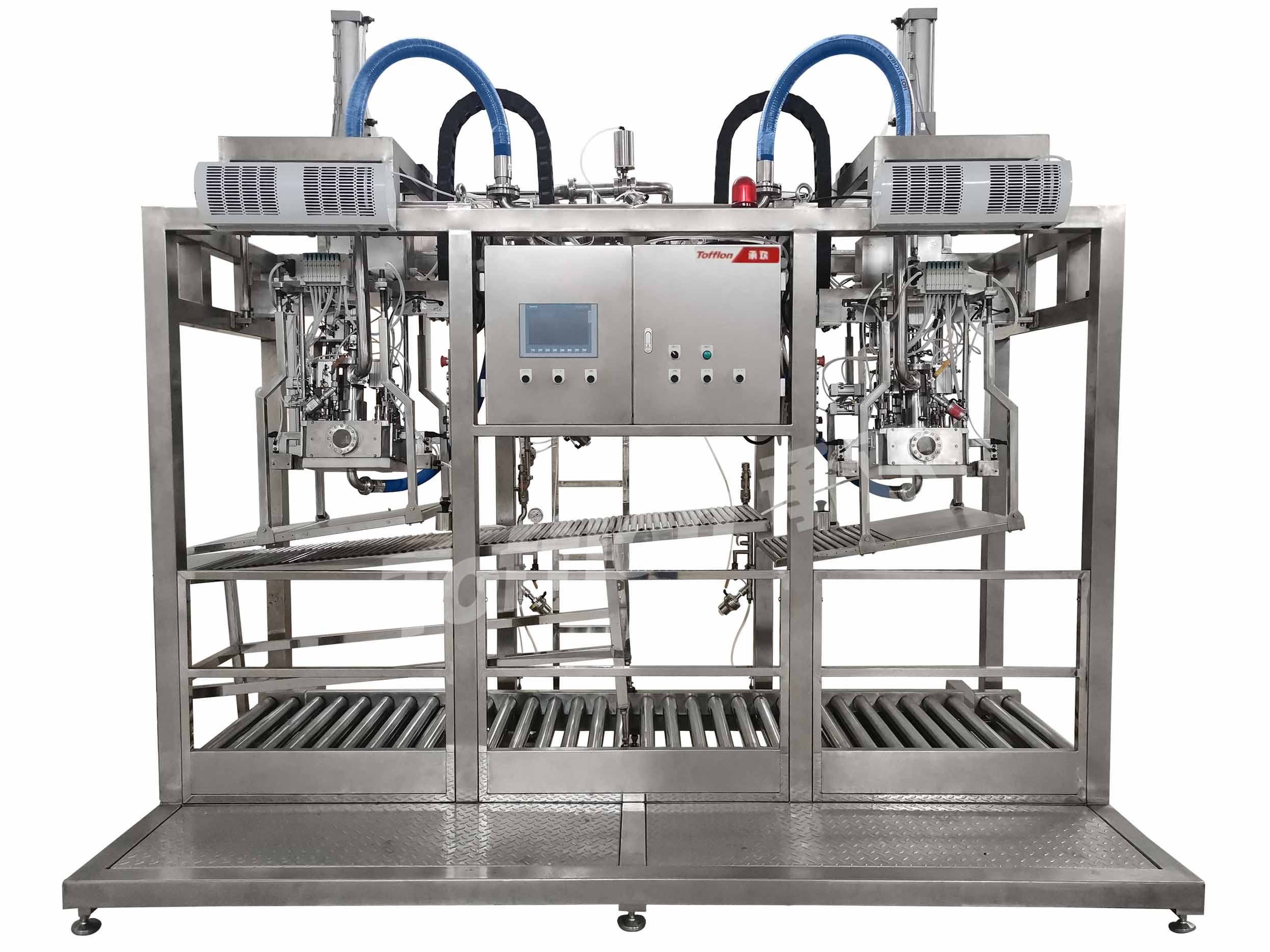

3.1 Equipment description

The aseptic large bag filling system integrates pre-sterilization, filling and cleaning, and can realize filling with various capacities of 5-220kg. According to customer needs, it can be designed as multiple filling heads or ton bags/ton boxes and other filling forms, which can fill different capacity packaging containers at the same time, and is compatible with BiB packaging.

3.2 Application fields

It is suitable for aseptic filling of various products such as fruit and vegetable juice, puree, fruit particles, jam, herbal tea, dairy products etc.

3.3 Equipment features

1. Equipped with a large barrel workbench and a small bag workbench, the height of the position can be adjusted according to the size of the packaging container to adapt to the filling of products of different specifications;

2. Provide a variety of safety guarantees to prevent mechanical damage and ensure product quality;

3. CIP cleaning pipeline adopts high quality stainless steel SUS304, fixed connection;

4. Adopt Siemens PLC and touch screen to realize automatic control and operation of equipment temperature and metering;

5. Aseptic product sampling can achieve quantitative control.
